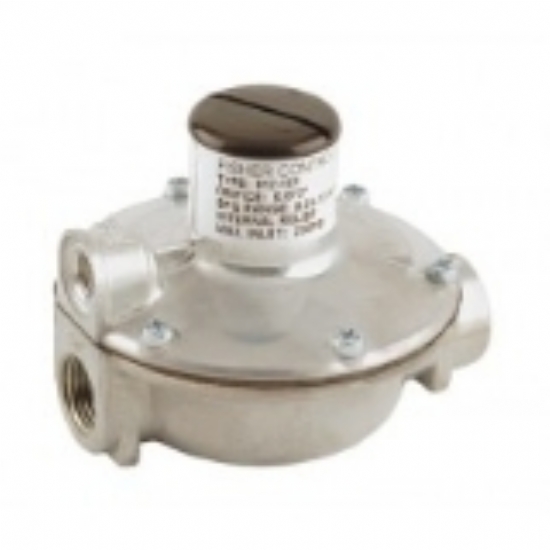

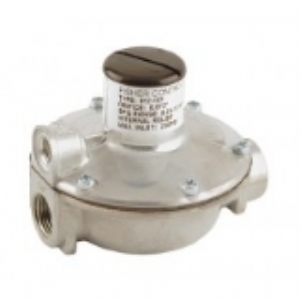

产品名称：费希尔FISHER调压器 912-104
关键词：FISHER,费希尔,FISHER调压器,912-104,912N-109,912-101,912-122,912h-108 型号：912-104,912N-109,912-101,912-122,912h-108 品牌：美国FISHER费希尔 规格：1/4NPT 价格：0 元/台 浏览次数：2575 次  |
| Small Portable Appliance Regulators | |||||
| Type 912-Dessigned for use on small portable outdoor appliances. | |||||
| Underwriters Laboratory(UL)requires horizontally mounted | |||||
| regulators to be installed with vent opening protection to | |||||
| prevent blockage by freezing rain. Vent protector Type P331 can | |||||
| be used on a horizontally mounted Type 912 | |||||
|
Appliance Regulators | ||||||||
|
TYPE NUMBER |
PRESSURE RANGE Inches w.c.(mbar) |
OUTLET PRESSURE Inches w.c.(mabar) |
Capacities in BTU/hr Propane |
INLET CONNECTION, Inches(mm) |
OUTLET CONNECTION Inches(mm) |
ORIFICE SIZE, Inches(mm) | ||
|
10psig,Inlet |
25psig,Inlet |
100psig,Inlet | ||||||
|
912-194（1） |
3 to 7 (7 to 17) |
5 (12) |
101 000 |
151 000 |
---- |
1/4 (6,4) |
1/4 (6,4) |
0.073 (1,85) |
|
912-104 |
9.25 to 13(23to32) |
11(27) |
101 000 |
270 000 |
349 000 |
1/4 (6,4) |
1/4 (6,4) |
0.073 (1,85) |
|
912N-109(1) |
5 to 10(12to25) |
7(17) |
123 000 |
232 000 |
556 000 |
1/4 (6,4) |
3/8(9,5) |
0.073 (1,85) |
|
912-101 |
9.25 to 13(23to32) |
11(27) |
110 000 |
201 000 |
494 000 |
1/4 (6,4) |
3/8(9,5) |
0.073 (1,85) |
|
912-122 |
9.25 to 13(23to32) |
11(27) |
110 000 |
201 000 |
494 000 |
1/4 (6,4) |
3/8(9,5) |
0.073 (1,85) |
|
912H-108 |
0.5 to 2.7 psig (0,03 to0,19bar) |
1.5 psig (103) |
131 000 |
202 000 |
470 000 |
1/4 (6,4) |
3/8(9,5) |
0.094(2,39) |
|
1.Not UL listed. | ||||||||
